Description

Load Rite 5S-AC21T5200102TB1 Aluminum Tandem-Axle Boat Trailer for Sale in Florida

Shop the Load Rite 5S-AC21T5200102TB1 aluminum tandem-axle boat trailer with 5,200-lb capacity, torsion axles, disc brakes, LED lights and adjustable carpeted bunks. Call 321-253-4050.

LOAD RITE 5S-AC21T5200102TB1 ALUMINUM TANDEM-AXLE BOAT TRAILER

[See Complete Spec Sheet Click Here](https://www.loadrite.com/spec-sheet-generation/?sheet_id=2854&sheet_model=5S-AC21T5200102TB1)

5,200-LB CARRYING CAPACITY | TORSION AXLES | ALUMINUM I-BEAM FRAME

Give your boat the strength, support and road stability it deserves with the Load Rite 5 STARR 5S-AC21T5200102TB1.

This corrosion-resistant aluminum tandem-axle boat trailer combines a patented I-beam frame, independent torsion suspension, disc brakes and adjustable carpeted bunks. It is an excellent choice for many center consoles, bay boats, deck boats, bowriders, dual consoles and other popular powerboats weighing up to 5,200 pounds when fully loaded.

Waterproof LED lighting, concealed wiring, DOT-rated tires and marine-ready construction make it especially well suited for Florida boating.

FULL FACTORY SPECIFICATIONS

Manufacturer: Load Rite Trailers
Series: 5 STARR Aluminum Bunk
Model: 5S-AC21T5200102TB1
Trailer Type: Aluminum bunk boat trailer
Frame Construction: Patented aluminum I-beam
Carrying Capacity: 5,200 lbs.
Bow Eye to Transom Maximum: 20 ft. 3 in.
Bow Eye to Transom Minimum: 15 ft. 5 in.
Bunk Type: C-style adjustable carpeted bunks
Number of Axles: Two
Suspension: Torsion axles
Brakes: Disc brakes on one axle
Tire Size: ST205/14C
Overall Width: 102 in.
Clearance Between Fenders: 84 in.
Overall Trailer Length: 23 ft. 6 in.
Lighting: DOT-approved LED lighting
Warranty: Load Rite/5 STARR 2 Plus 3 limited warranty

IMPORTANT: Trailer compatibility must be determined using the boat’s fully loaded weight, hull design and bow-eye-to-transom measurement—not its advertised overall length alone.

STANDARD FEATURES

• Patented aluminum I-beam frame
• 5,200-pound carrying capacity
• Tandem torsion-axle suspension
• Disc brakes on one axle
• Greaseable hubs
• Continuous carpeted wood bunks
• Carpeted target bunks to guide and protect the keel
• Stainless-steel hardware in applicable locations
• Integrated wiring and brake-line gutter
• Heat-shrunk, sealed and concealed wiring
• Waterproof DOT-approved LED lights
• DOT-rated ST205/14C bias-ply trailer tires
• Dynamically balanced wheel assemblies
• One-piece aluminum diamond-plate fenders
• Tongue jack
• Adjustable winch stand and bow support
• NMMA and NATM-certified construction
• KendaCare/LoadStar tire roadside-assistance program
• Load Rite/5 STARR 2 Plus 3 limited warranty

5 REASONS TO BUY TODAY

- GET THE CAPACITY YOUR BOAT NEEDS

This trailer provides 5,200 pounds of carrying capacity for the boat, engine, fuel, batteries, accessories and normal onboard equipment. Adequate capacity helps protect your boat, trailer and tow vehicle.

- ENJOY SMOOTHER TOWING

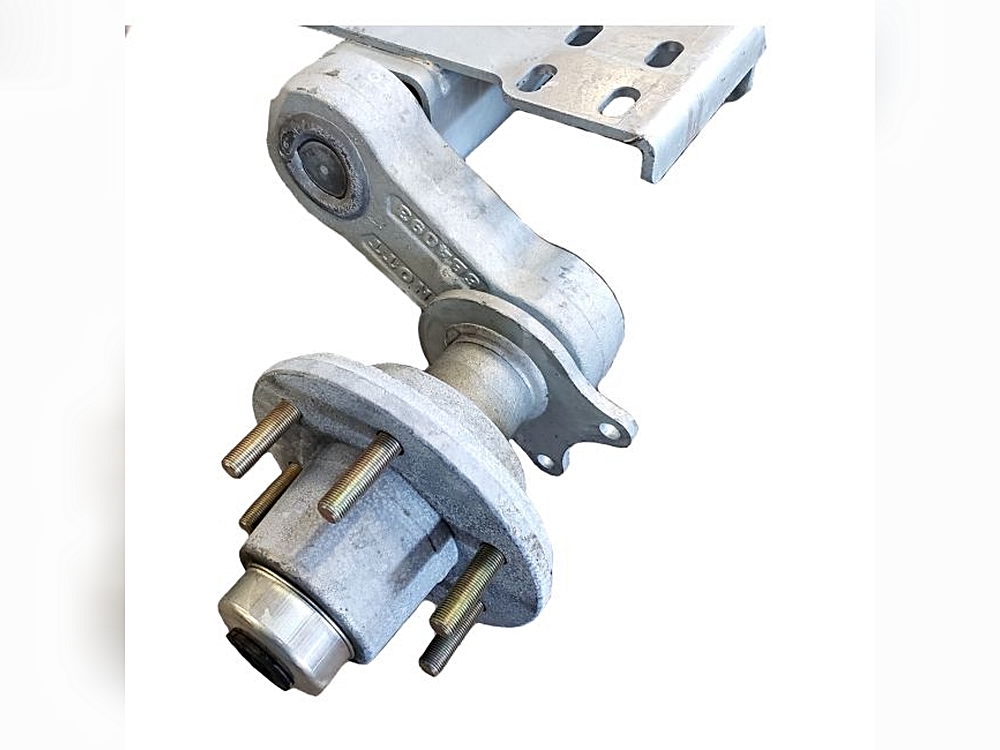

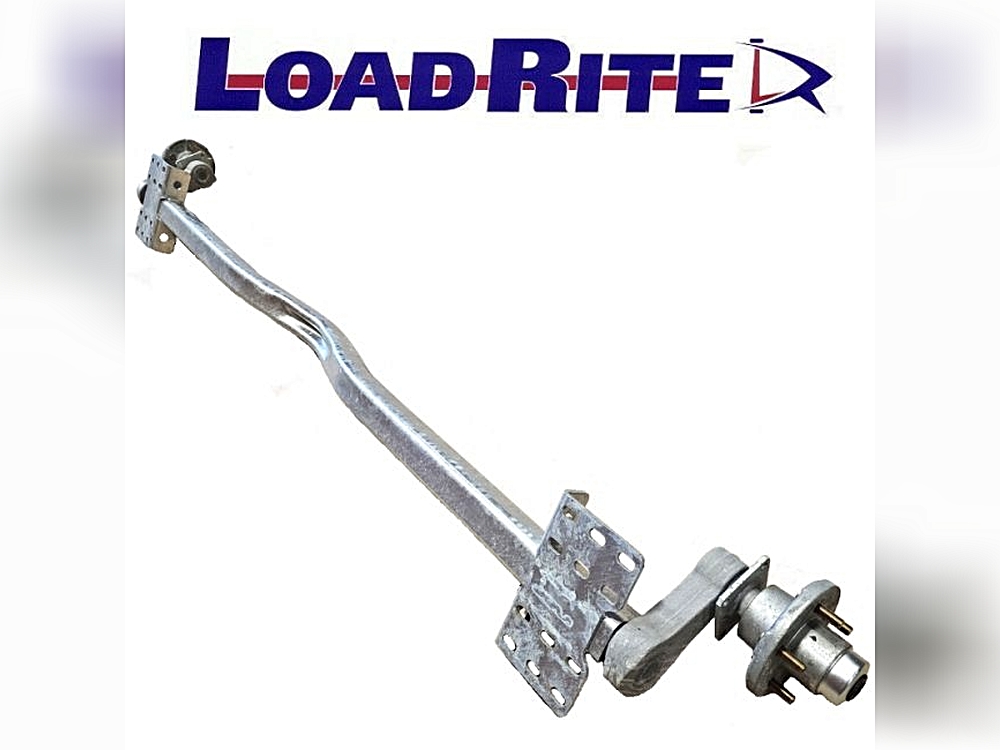

Independent torsion axles provide a smooth, quiet and controlled towing experience without the metal-to-metal movement associated with conventional leaf-spring suspension.

- PROTECT YOUR HULL

Adjustable carpeted bunks provide broad hull support without marring the finish. Carpeted target bunks help guide the keel and reduce the chance of keel-to-crossbar contact during loading and launching.

- CHOOSE A TRAILER BUILT FOR FLORIDA BOATING

The aluminum I-beam frame offers natural corrosion resistance while reducing unnecessary trailer weight. Waterproof LED lights and sealed wiring add durability for coastal and saltwater boating.

- SECURE THE CORRECT TRAILER WHILE IT IS AVAILABLE

Boat trailers are not one-size-fits-all. If this model matches your boat’s weight, dimensions and hull configuration, buying today can help you avoid inventory shortages and special-order delays.

BUILT TO SUPPORT AND PROTECT YOUR BOAT

The Load Rite 5S-AC21T5200102TB1 is constructed around a patented aluminum I-beam frame designed to deliver excellent strength and stability with a clean, custom appearance.

Integrated channels help conceal and protect the wiring and brake lines. Web-mounted crossbars add structural strength, while stainless-steel hardware and aluminum diamond-plate fenders provide lasting durability.

The adjustable bunk system can be professionally positioned to support many different hull configurations. Target bunks located ahead of the main bunks help catch and guide the keel as the boat moves onto the trailer.

FIVE FREQUENTLY ASKED QUESTIONS

- WHAT SIZE BOAT WILL THIS LOAD RITE TRAILER FIT?

The factory specifies a bow-eye-to-transom range of 15 feet 5 inches to 20 feet 3 inches. This may correspond with boats having a different advertised overall length because bows, swim platforms, brackets and outboard engines are measured differently.

- DOES THE 5,200-LB CAPACITY INCLUDE THE TRAILER?

No. The published 5,200-pound figure is the trailer’s carrying capacity. Your calculation should include the boat, engine, fuel, batteries, water, accessories and everything normally carried aboard.

- HOW MANY AXLES HAVE BRAKES?

This specific TB1 configuration is equipped with disc brakes on one axle. Brakes on the second axle may be available as an upgrade. Brake requirements vary, so the trailer must comply with the laws where it will be registered.

- CAN THIS ALUMINUM TRAILER BE USED IN SALTWATER?

Yes. The aluminum frame provides natural corrosion resistance and is well suited for coastal boating. After every saltwater launch, rinse the entire trailer with fresh water, paying particular attention to the brakes, hubs, axles, suspension and fasteners.

- CAN THIS TRAILER BE ADJUSTED TO FIT MY BOAT?

Yes. Its carpeted bunks, target bunks, winch stand and bow support can be adjusted. Proper setup depends on the hull design, center of gravity, loaded weight and required tongue weight. Contact us with your boat’s year, manufacturer, model and engine configuration so the fit can be evaluated.

GET THE RIGHT TRAILER—AND GET IT SET UP RIGHT

The Load Rite 5S-AC21T5200102TB1 delivers the carrying capacity, corrosion resistance, towing stability and hull support needed to transport your boat confidently.

Don’t risk your boat on an undersized, overloaded or improperly adjusted trailer. Let our experienced team confirm the right model and professionally fit it to your boat.

CALL 321-253-4050 TODAY

Ask about current availability, pricing, professional boat fitting, trade-ins and pickup or delivery options.

Specifications are based on Load Rite’s published factory information and are subject to change. Photographs may show optional equipment. Confirm installed equipment, boat compatibility, loaded weight, tongue weight and tow-vehicle rating before purchase.
